Intuitive, easy-to-use trim tab system
Dometic SeaStar Trim Tabs are designed to enhance your boat's performance and provide a smoother ride. The trim tabs come with an intuitive dial controller, allowing you to easily adjust the boat's position for optimal performance in any situation. By simply turning the dial in the desired direction, the electric actuators respond quickly and accurately, leveling the boat accordingly. The controller features easy-to-see LED lights, indicating the port and starboard tab positions, with an ambient light sensor for automatic brightness adjustment, ensuring optimal visibility in all environments. Constructed with high-quality materials, Dometic SeaStar Trim Tabs are built to withstand the test of time. They are also fully adjustable, enabling you to fine-tune the ride according to your specific preferences. Whether you are a recreational boater or a professional fisherman, Dometic SeaStar Trim Tabs are an ideal choice to improve your boat's performance and elevate your boating experience. |
WHY SEASTAR TRIM TABS BY DOMETIC?
Explore the benefits of using Dometic SeaStar electric trim tabs in NZ:
- Increase Fuel Efficiency: Adjust your boat's running angle to achieve the optimal angle for fuel-efficient operation.
- Improve Comfort: Adjust the running angle based on weather conditions to enhance comfort on board.
- Enhanced Safety: Dometic Trim tabs can improve stability in varying sea states, contributing to a safer boating experience.
- Better Visibility: Adjust the bow down position for improved visibility while navigating.
- Professional Boat Handling: Gain precise control over your boat's position, regardless of the conditions.
SeaStar Trim Tab Control Options:
|

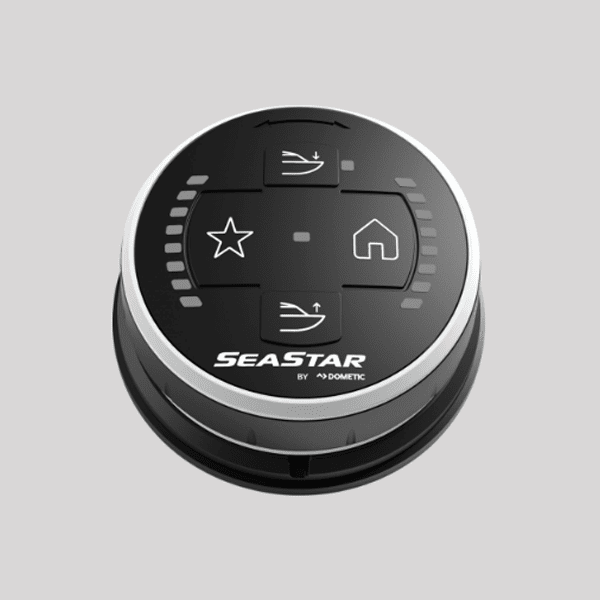

SEASTAR STANDARD TRIM TABS: This option features an intuitive rotary dial control with clear tab position indicators. It allows for up/down pitch control while maintaining boat roll, and you can easily set your favorite running configuration for quick adjustments. The home button allows for rapid tab retraction, which is especially beneficial during rough seas. Auto retract on ignition key off/on is also available with this option. |
|

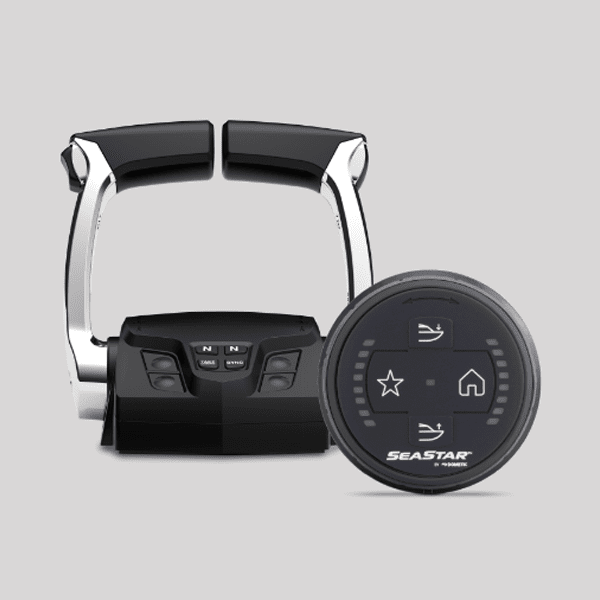

SEASTAR ADAPTIVE TRIM TABS: The adaptive trim tabs provide smart integration with NMEA2000 data. With the Hole Shot Mode enabled, the tabs automatically adjust at take-off to get the boat on plane efficiently. Once the set RPM or speed is achieved, the tabs move to the favorite position for optimal ride performance. When the throttle goes into reverse, the tabs automatically fully retract for safety and control. * For Hole shot and Automatic Tab retraction, a public NMEA2000 network is required that has the necessary engine data. You will need Gear position and Engine RPM on the network to use these features. If the data can be displayed on an MFD, it should be available. |
|
SEASTAR OPTIMUS ADAPTIVE TRIM TABS: These trim tabs are smartly integrated with the Optimus Joystick and Optimus EPS systems. Like the adaptive option, the Optimus adaptive trim tabs offer Hole Shot Mode, auto retract, and easy setup using the Optimus CANtrak display or dial controller. Additionally, a 2nd station can be easily added for convenience. |
INTUITIVE TRIM TAB DIAL CONTROLLER
The Intuitive Seastar Trim Tab Rotary Controller by Dometic enhances your boating experience with its user-friendly features. The System Status Indicator provides clear visual cues with different light patterns for various functions, ensuring easy operation and quick troubleshooting. The Tab-Position Indicator LEDs keep you informed about the positions of the port and starboard tabs. The Bow Down function lowers both tabs simultaneously, causing the bow to drop, while the Bow Up raises both tabs, lifting the bow. The SeaStar Control Dial allows you to effortlessly roll the boat for a leveled ride, and the Home button retracts the tabs to the default position. You can also save your preferred tab position with the Favourite button. The Auto Brightness button automatically adjusts the LED brightness for optimal visibility. Alternatively, you can manually adjust the brightness by disabling this feature. |
Trim Tab Kits:
|
STT3107R DOMETIC STANDARD TRIM TAB KIT
|
|
STT3233R DOMETIC STANDARD TRIM TAB KIT
|
|
STT3207R DOMETIC STANDARD TRIM TAB KIT
|
|
STT3103R DOMETIC STANDARD TRIM TAB KIT
|
|
STT3105R
|
|
STT3131R DOMETIC STANDARD TRIM TAB KIT
|
|
STT3231R DOMETIC STANDARD TRIM TAB KIT
|
|
STT3133R DOMETIC STANDARD TRIM TAB KIT
|
|
STT3205R DOMETIC STANDARD TRIM TAB KIT
|
|
ATT4207 DOMETIC ADAPTIVE TRIM TAB KIT
|
Understanding Trim Tabs: Enhancing Boat Control with Dometic
Trim tabs are a pair of carefully positioned plates, typically crafted from high-quality stainless steel, strategically installed on the transom of boats. In some cases, boat builders may opt for custom-made trim tab plates, also known as "blades," constructed from composite materials like fiberglass or carbon fiber.
The primary function of trim tabs is to effectively redirect the flow of water around the boat's transom. By adjusting the position of the trim tabs, the water flow can be precisely controlled.
Lowering both trim tabs simultaneously generates an upward force at the stern, causing the bow to lower and providing effective pitch control for the boat. Lowering a single trim tab influences the opposite bow, granting control over the boat's roll.
The combined pitch and roll of the boat determine its overall position, referred to as its attitude. By making necessary adjustments to the boat's attitude using trim tabs, numerous advantages can be attained. These include accelerated planing, improved stability at lower speeds, increased top speed, correction of minor leaning, enhanced ride comfort and visibility, minimized bouncing motion (porpoising), and improved fuel efficiency.
Unleash the benefits of comprehending and utilizing trim tabs to achieve superior control and optimize your boating experience
Boat without trim tabs
Boat with trim tabs
MOUNTING TRIM TABS
When deciding where to mount trim tabs, there are several things to consider. The outboard edge of the tab should be 1" to 4" (25 to 100 mm) inboard from the chine. The further apart the trim tabs are positioned, the more effective it is in controlling the side-to-side position of the boat. The edges of the tab should be at least 2" (51 mm) from a hull strake. Also, to avoid interference with the engine, the tab must be at least 8" (205 mm) from the lower unit's centreline. |
SEASTAR TRIM TAB MOUNTING TYPES
|

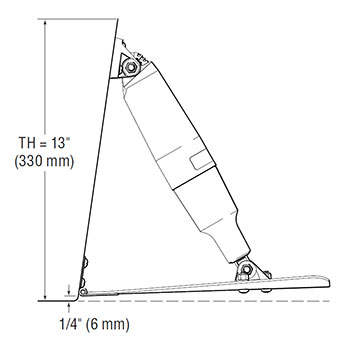

STANDARD MOUNT TRIM TABS
Dimensions shown apply to a standard 11.5" actuator |
|
POCKET MOUNT TRIM TABS
Dimensions shown apply to a standard 11.5" actuator |
|
EDGE MOUNT TRIM TABS
Dimensions shown apply to a standard 11.5" actuator |
Find the Perfect Trim Tab Kit with our Lookup Table
Explore our comprehensive lookup table for Dometic SeaStar trim tabs kit part numbers, designed for your convenience. This user-friendly table provides key details including trim tab size, finish type, actuator length and stroke, as well as the trim tab control type. To learn more about a specific trim tab kit, simply click on the corresponding part number below.
| Part # | Type | Stroke | Length | Tab | Mount | Polished? |
| ATT4205 | ADAPTIVE | 2.25" | 11.5" | 12"X12" | EDGE | YES |
| ATT4207 | ADAPTIVE | 2.25" | 11.5" | 12"X9" | EDGE | YES |
| ATT4601 | ADAPTIVE | 2.25" | 11.5" | NONE | NA | NA |
| ATT4701 | ADAPTIVE | 4.25" | 13" | NONE | NA | NA |
| STT3103R | STANDARD | 2.25" | 11.5" | 9"X12" | STANDARD | NO |
| STT3105R | STANDARD | 2.25" | 11.5" | 12"X12" | STANDARD | NO |
| STT3107R | STANDARD | 2.25" | 11.5" | 12"X9" | STANDARD | NO |
| STT3131R | STANDARD | 2.25" | 10" | 9"X12" | STANDARD | NO |
| STT3133R | STANDARD | 2.25" | 10" | 12"X12" | STANDARD | NO |
| STT3205R | STANDARD | 2.25" | 11.5" | 12"X12" | EDGE | NO |
| STT3207R | STANDARD | 2.25" | 11.5" | 12"X9" | EDGE | NO |
| STT3231R | STANDARD | 2.25" | 10" | 12"X12" | EDGE | NO |
| STT3233R | STANDARD | 2.25" | 10" | 12"X9" | EDGE | NO |
| STT3601R | STANDARD | 2.25" | 11.5" | NONE | NA | NA |
| STT3701R | STANDARD | 4.25" | 13" | NONE | NA | NA |
| TT5205 | OPTIMUS | 2.25" | 11.5" | 12"X12" | EDGE | YES |
| TT5207 | OPTIMUS | 2.25" | 11.5" | 12"X9" | EDGE | YES |
