MAVIMARE HYDRAULIC STEERING & CONTROL SYSTEMS
|
Established in 1968, Mavimare specializes in the development and production of high-quality marine steering and control systems, including hydraulic steering systems, mechanical steering helms and cables, and outboard motor control cables. With an unwavering commitment to craftsmanship, precision, and continuous improvement, Mavimare's products exemplify exceptional quality, incorporating innovative technology for outstanding performance in all conditions. Meticulously crafted with corrosion-proof materials, their systems offer long-term durability, maximum reliability, and reliable solutions for boatbuilders and enthusiasts worldwide. |
QUALITY AND RELIABLE MARINE STEERING SYSTEMS
With Mavimare steering systems, you can expect quick and precise response, delivering a smooth and pleasurable steering experience. Furthermore, our systems require no maintenance and boast easy installation, providing additional advantages to customers worldwide.
Unlike companies that outsource production and assembly, Mavimare manufactures the most critical components internally, including the helm pump valve, rotor, and distributor.
Mavimare use state-of-the-art CNC machinery and technologies to meticulously inspect each important component, ensuring top-notch quality and competitive pricing.
Prior to packaging and dispatch, every Mavimare product undergoes rigorous individual testing. Promt Parts maintain an extensive inventory of spare parts for all Mavimare products, including o-ring kits. Customers can rely on Promt Parts to promptly supply any required item for their boats control or steering system.
|
HYDRAULIC HELM PUMPS: All the components of Mavimare pumps are obtained through an industrialized working process to ensure the best quality and reliability of the product. Mavimare hydraulic steering kits are supplied with a square bezel kit, allowing for easy retrofitting of the pump into the helm. The kit also includes hoses with pressed fittings on one end, high quality corrosion resistant fittings, hydraulic oil and everything you need to bleed the system. All components of the Mavimare hydraulic pumps are produced using high-quality raw materials carefully selected based on the specific functions of each component:
|
|
HYDRAULIC STEERING CYLINDERS: The Mavimare hydraulic steering systems represent a successful combination of superb craftsmanship and innovative technology to ensure the best possible performance under all conditions and situations.
|
Selecting an Outboard hydraulic steering system
When installing an outboard engine on a boat, it is important to determine the maximum horsepower generated by the engine. For two engines operating in the same rotational direction, the power of both engines is combined. However, when using two engines with counter-rotation, only the power of one motor should be considered.
Here are a few examples:
- Installation of 1x 115 HP - GF150BRT or GF150T
- Installation of 2x 115 HP (same rotational direction) - GF300HD/GF300BHD
- Installation of 2x 200 HP (counter-rotation) - GF300HD/GF300BHD/GF350HD
|
Engine up to:
|
80hp
|
150hp
|
300hp
|
350hp
|
|---|---|---|---|---|
|
Single Engine
|
||||
|
Twin Engine
(with counter rotating propeller) |
OUTBOARD HYDRAULIC STEERING SYSTEMS
GF90BT : OUTBOARD MOTORS UP TO 80HP
|

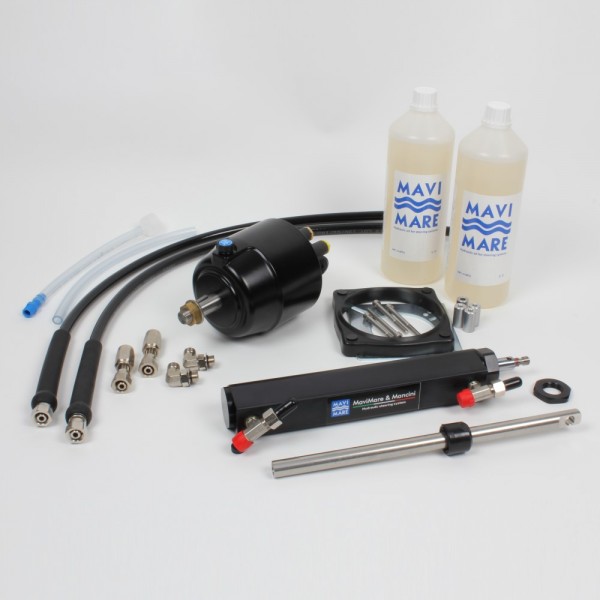

GF150T : OUTBOARD MOTORS UP TO 150HP
|
|
GF150BRT : OUTBOARD MOTORS UP TO 150HP
|
|
GF300HD : OUTBOARD MOTORS UP TO 300HP
|
|
GF300BHD : OUTBOARD MOTORS UP TO 300HP
|
GF300RT : OUTBOARD MOTORS UP TO 300HP
|
GF350HD : OUTBOARD MOTORS UP TO 350HP
|
|
GF300HD2 : TWIN OUTBOARD MOTORS UP TO 300HP
|
STERNDRIVE HYDRAULIC STEERING SYSTEMS
|
GF150ET : POWER ASSISTED STERNDRIVES
|
|
GF300BET : NON POWER ASSISTED STERNDRIVES
|
EVOLUTION HYDRAULIC CYLINDER
Experience the difference, both visually and in performance! Introducing an unparalleled innovation: the Evolution hydraulic cylinder for GF300BHD, the only steering system worldwide with a "bullhorn" type balanced cylinder featuring fixed hoses. Enjoy the utmost safety with the unique design of fixed hoses, ensuring reliable steering performance. Experience the freedom of freespace in the splash well, optimizing your boating experience. With its cutting-edge hitech design, this hydraulic cylinder offers fast and hassle-free installation on all types of outboard engines. Engineered for outboard engines up to 300hp (or 600 combined H.P. for twins with counter-rotating propellers), the Evolution hydraulic cylinder stands as the industry's exclusive steering system with a "bullhorn" balanced cylinder and patented fixed hoses. When it comes to hydraulic steering systems, the balanced-frontal mounting cylinder surpasses the lateral mounting cylinder as the superior choice. Mavimare's groundbreaking innovation lies in the patented oil conduction method of this balanced-frontal mounting cylinder. This design ensures that the hoses remain stationary in the same position when the steering wheel is turned, as they are not connected to the body's cylinder. As the hoses and fittings play a crucial role in hydraulic steering systems, the absence of chafing, rubbing, and twisting significantly enhances the safety of the system during boat operation. |
Key Features:
- Compact design requiring minimal space and offering adjustable mounting positions for installation flexibility
- Stainless steel rod with thick chrome plating for exceptional durability
- Ultra corrosion-resistant construction, with painted components being anodized before coating for additional protection
- Easy selection with adjustable connections that accommodate the fixing center of any engine
- Swift assembly process
To ensure quick installation and enhance navigation safety, all Mavimare hydraulic steering systems come equipped with fittings already securely pressed onto the hoses. Mavimare's single cylinders, up to 300 hp, can operate a twin outboard motor installation. If both propellers rotate in the same direction, the total combined output of the engines should not exceed 300 hp. However, if the motors have counter-rotating propellers, the maximum combined power can be extended to 600 hp.

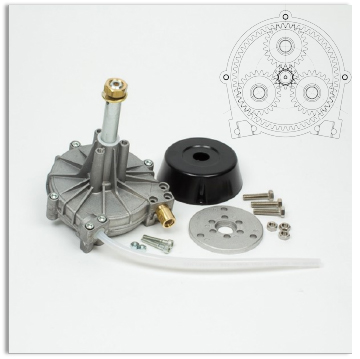

Mavimare's G.12 mechanical steering helms are meticulously crafted with an ingenious planetary gear design. This innovative system comprises a central gear and three satellite gears that rotate on their axes while orbiting the central helm axis. This unique arrangement ensures the equitable distribution of engine torque across the central gear, effectively splitting and balancing the loads within the system. Mavimare's commitment to innovation ensures optimal performance, delivering a smoother, more reliable, and highly efficient steering experience. Mavimare steering helms are crafted from corrosion-resistant materials, ensuring exceptional durability and longevity, even in harsh marine environments.
- Engineered for both right and left-hand drive configurations, offering flexibility for various boat setups.
- Interchangeable with T.71 Ultraflex® and SAFE-T Teleflex® systems for seamless integration.
- Includes a 90° bezel kit in each package for added convenience during installation.
- The lock-to-lock steering wheel turns of 3.8 provide responsive and precise steering control.
- Accommodates a maximum wheel diameter of 400 mm, providing comfortable handling for different boat sizes.
- Mavimare exceeds EN 28848 safety standards, prioritizing safety and offering peace of mind during boating adventures.
MECHANICAL STEERING CABLES
Experience reliable and precise steering control with the Mavimare C.17 Steering Cable Range. As a trusted provider of high-quality marine steering systems, Mavimare offers a comprehensive selection of steering cables designed to meet the needs of boat owners. The Mavimare C.17 Steering Cable Range is known for its exceptional performance and durability. With a wide range of lengths available, from 5 ft through to 40 ft, we have the perfect cable to suit your boat's specifications. Whether you have a small pleasure craft or a larger vessel, Mavimare has you covered.
Mavimare C.17 Steering Cables are designed for seamless compatibility and interchangeability with Ultraflex® and Teleflex® steering systems, providing you with flexibility and ease of installation. Trust in Mavimare's commitment to quality and compatibility. Engineered with precision, the Mavimare C.17 Steering Cable Range offers a smooth and responsive steering experience. The all-stainless-steel construction ensures long-lasting durability and resistance to corrosion, even in harsh marine environments. We carry an extensive range of steering cables, ranging from 6ft through to 40ft!
|
REMOTE CONTROL CABLES

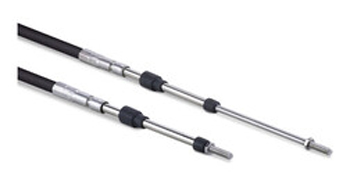

Discover the exceptional performance of Mavimare C.048 control cables, the ideal choice for SeaStar 33CC cable replacements as well as Yamaha, Suzuki, Honda, and Volvo applications. Designed and manufactured with meticulous precision in Italy, these control cables are engineered to deliver unparalleled durability and reliability in the demanding marine environment.
Mavimare C.048 control cables feature top-quality components, ensuring their longevity and dependability. The stainless steel terminals and conduit fittings offer outstanding resistance to corrosion, while the stainless steel Lubri-Core wires, equipped with moisture protective seals, provide added durability and protection against corrosive elements.
Built to withstand the rigors of the marine environment, the robust black HDPE outer jacket of the Mavimare C.048 control cables offers exceptional abrasion resistance and is specially engineered to resist UV rays, saltwater, chemicals, gasoline, and oil. These cables are designed to provide reliable performance and maintain their integrity over an extended lifespan.
We carry an extensive range of remote control cables, ranging from 5ft through to 40ft!
