Promt Parts: Your One-Stop Shop for Marine Parts in New Zealand

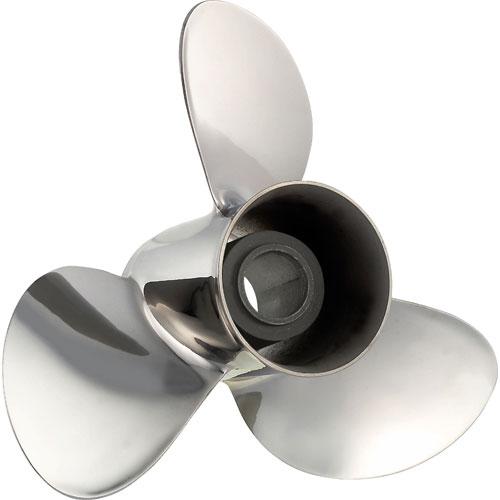

PROPELLER DETAILS:

SKU: 9432-130-19

Brand: Rubex

Style: NS 3

Material: Stainless Steel

Blades: 3

Diameter: 13

Pitch: 19

Rotation: Left hand

Price: $709.72 (excl Gst)

Available Qty: 2

Evinrude
Engine HP	Engine year	Engine model	Requires hub
40	2004 - 2010	E-Tec (13 Spline)	RBX-106
40	2011 - 2014	E-Tec (13 Spline)	RBX-106
40	2015 - Present	E-Tec (13 Spline)	RBX-106
45	1986 - 1997	2 Cylndr Commercial (13 Spline)	RBX-106
50	1971 - 1974	Lark/Pleasure (13 Spline)	RBX-106
50	1977 - 1979	2 Cylinder Commercial (13 Spline)	RBX-106
50	1994 - 1999	3 Cylinder Pleasure (13 Spline)	RBX-106
50	2004 - 2014	E-Tec (13 Spline)	RBX-106
50	2015 - Present	E-Tec (13 Spline)	RBX-106
55	1968 - 1969	3 Cylndr 2 Stroke (13 Spline)	RBX-106
55	1980 - 1998	2 Cylndr Commercial (13 Spline)	RBX-106
55	2009 - 2016	E-Tec (13 Spline)	RBX-106
60	1970 - 1971	3 Cyl. Pleasure (13 Spline)	RBX-106
60	1986 - 1989	3 Cyl. Pleasure (13 Spline)	RBX-106
60	1990 - 1998	3 Cyl. Pleasure (13 Spline)	RBX-106
60	2004 - 2014	E-Tec 2-Cylinder (13 Spline)	RBX-106
60	2015 - Present	E-Tec 2-Cylinder (13 Spline)	RBX-106
60	2015 - Present	E-Tec HO 3-Cyl.20in.Shaft (13 Spline)	RBX-106
60	2015 - Present	E-Tec HO 3-Cyl.25in.Shaft (13 Spline)	RBX-106
65	1972 - 1973	Triumph/Pleasure (13 Spline)	RBX-106
65	1984 - 2001	3 Cyl Commercial (13 Spline)	RBX-106
65	2014 - Present	E-Tec Pontoon Series (15 Spline)	RBX-106
70	1974 - 1985	3 Cylndr Pleasure (13 Spline)	RBX-106
70	1974 - 2001	3 Cyl Commercial (13 Spline)	RBX-106
70	1986 - 1997	3 Cylndr Pleasure (13 Spline)	RBX-106
70	1998 - 2001	4 Stroke (13 Spline)	RBX-110
70	2005	E-Tec (13 Spline)	RBX-106
75	1978 - 1984	Pleasure Large Gearcase (13 Spline)	RBX-106
75	2001 - 2003	Ficht (13 Spline)	RBX-106
75	2004 - 2010	E-Tec (13 Spline)	RBX-106
75	2011 - 2014	E-Tec 20in. Shaft (13 Spline)	RBX-106
75	2011 - 2014	E-Tec 25in. Shaft (13 Spline)	RBX-106
75	2015 - Present	E-Tec 20in. Shaft (13 Spline)	RBX-106
75	2015 - Present	E-Tec 25in. Shaft (13 Spline)	RBX-106
85	1969 - 1980	2 Stroke/Starflite (13 Spline)	RBX-106
85	1991 - 1995	2 Stroke (13 Spline)	RBX-106
88	1981 - 1996	Special (13 Spline)	RBX-106
90	1981 - 1997	V4 2 Stroke (13 Spline)	RBX-106
90	1998	Ficht (13 Spline)	RBX-106
90	1999 - 2000	Ficht (13 Spline)	RBX-106
90	2001 - 2003	Ficht (13 Spline)	RBX-106
90	2004 - 2014	DPL,DSL E-Tec 20in. (13 Spline)	RBX-106
90	2014 - Present	E-Tec Pontoon Series (15 Spline)	RBX-106
90	2015 - Present	E-Tec 20in. Shaft (13 Spline)	RBX-106
100	1979 - 1980	2 Stroke (13 Spline)	RBX-106
100	1988 - 1993	2 Stroke (13 Spline)	RBX-106
110	1986 - 1989	2 Stroke (13 Spline)	RBX-106
112	1994 - 1996	V4 Special 2 Stroke (13 Spline)	RBX-106
115	1973 - 1997	V4 2 Stroke (13 Spline)	RBX-106
115	1995 - 1998	V4 Intruder (13 Spline)	RBX-106
115	1998	V4 Ficht (13 Spline, 20in. Shaft)	RBX-106
115	1999 - 2000	V4 Ficht (13 Spline, 20in. Shaft)	RBX-106
115	2001 - 2004	V4 Ficht (13 Spline, 20in. Shaft)	RBX-106
115	2005 - 2007	E-Tec (13 Spline, 20in. Shaft)	RBX-106
115	2008 - Present	E-Tec (13 Spline, 20in. Shaft)	RBX-106
120	1986 - 1994	V4 (13 Spline)	RBX-106
125	1971 - 1972	V4 Starflite (13 Spline)	RBX-106
130	2006	E-Tec (13 Spline, 20in. Shaft)	RBX-106
130	2009 - 2013	E-Tec (13 Spline, 20in. Shaft)	RBX-106
135	1973 - 1976	V4 (13 Spline)	RBX-106
140	1977 - 1984	2 Stroke (13 Spline)	RBX-106
140	1985 - 1994	2 Stroke (13 Spline)	RBX-106

Force
Engine HP	Engine year	Engine model	Requires hub
75	1996 - Present	2 Cycle (15 Spline 4in. Hub)	RBX-102

Honda
Engine HP	Engine year	Engine model	Requires hub
60	2010 - Present	BFP60 (15 Spline)	RBX-107
75	1995 - 1998	BF75 (15 Spline)	RBX-102
75	1999 - Present	BF75 (15 Spline)	RBX-107
90	1995 - 1998	BF90 (15 Spline)	RBX-102
90	1999 - 2002	BF90 (15 Spline)	RBX-107
90	2003 - 2006	BF90 (15 Spline)	RBX-107
90	2007 - Present	BF90 (15 Spline)	RBX-107
115	1998 - 2010	BF115 (15 Spline)	RBX-107
130	1998 - 2004	BF130 (15 Spline)	RBX-107

Johnson
Engine HP	Engine year	Engine model	Requires hub
45	1986 - 1993	2 Cylndr Commercial (13 Spline)	RBX-106
50	1971 - 1974	2 Cylinder Pleasure (13 Spline)	RBX-106
50	1977 - 1979	2 Cylinder Commercial (13 Spline)	RBX-106
55	1968 - 1969	3 Cylndr 2 Stroke (13 Spline)	RBX-106
55	1980 - 2001	2 Cylndr Commercial (13 Spline)	RBX-106
60	1970 - 1971	3 Cylinder Pleasure (13 Spline)	RBX-106
60	1986 - 1989	3 Cyl. Pleasure (13 Spline)	RBX-106
60	1990 - 2001	3 Cyl. Pleasure (13 Spline)	RBX-106
60	2002 - 2005	4 Stroke (13 Spline)	RBX-110
65	1972 - 1973	3 Cyl Pleasure (13 Spline)	RBX-106
65	1984 - 2001	3 Cyl Commercial (13 Spline)	RBX-106
70	1974 - 1985	3 Cylndr Pleasure (13 Spline)	RBX-106
70	1974 - 2001	3 Cyl Commercial (13 Spline)	RBX-106
70	1986 - 1997	3 Cylndr Pleasure (13 Spline)	RBX-106
70	1998 - 2005	4 Stroke (13 Spline)	RBX-110
75	1978 - 1984	Pleasure,Large Gearcase (13 Spline)	RBX-106
85	1969 - 1980	2 Stroke (13 Spline)	RBX-106
85	1991 - 1995	2 Stroke (13 Spline)	RBX-106
88	1990 - 1996	2 Stroke (13 Spline)	RBX-106
90	1981 - 2000	V4 (13 Spline)	RBX-106
90	2001 - 2006	V4 (13 Spline)	RBX-106
100	1979 - 1980	2 Stroke (13 Spline)	RBX-106
100	1986 - 1993	2 Stroke (13 Spline)	RBX-106
110	1986 - 1989	2 Stroke (13 Spline)	RBX-106
112	1994 - 1996	2 Stroke (13 Spline)	RBX-106
115	1973 - 2000	2 Stroke (13 Spline)	RBX-106
115	2001 - 2006	2 Stroke (13 Spline)	RBX-106
120	1986 - 1994	2 Stroke (13 Spline)	RBX-106
125	1971 - 1972	V4 Gearcase (13 Spline)	RBX-106
135	1973 - 1976	V4 Gearcase (13 Spline)	RBX-106
140	1977 - 1984	2 Stroke (13 Spline)	RBX-106
140	1985 - 1994	2 Stroke (13 Spline)	RBX-106

OMC Stern Drive
Engine HP	Engine year	Engine model	Requires hub
Model 400 Drive	1978 - 1984	2.5L 120hp	RBX-106
Model 400 Drive	1978 - 1989	3.0L 140hp	RBX-106
Model 400 Drive	1978 - 1991	2.3L 120hp	RBX-106
Sea Drive (1.6L - 1.8L, 13 Spline)	1982 - 1990	1.6L V4	RBX-106
Cobra (2.3L-3.0L,13 Spline,non-SX)	1985 - 1987	2.5L 120hp	RBX-106
Cobra (2.3L-3.0L,13 Spline,non-SX)	1985 - 1987	3.0L 140hp	RBX-106
Sea Drive (1.6L - 1.8L, 13 Spline)	1987 - 1990	1.8L V4	RBX-106
Cobra (2.3L-3.0L,13 Spline,non-SX)	1988 - 1991	2.3L 128hp	RBX-106

Suzuki
Engine HP	Engine year	Engine model	Requires hub
60	1998 - 2009	DF60 4-Stroke (13 Spline)	RBX-110
70	1998 - 2008	DF70 4-Stroke (13 Spline)	RBX-110
75	1983 - 1991	DT75 (13 Spline)	RBX-110
75	1992 - 1997	DT75 (13 Spline)	RBX-110
85	1979 - 1991	DT85 (13 Spline)	RBX-110
85	1992 - 2000	DT85 (13 Spline)	RBX-110
90	1989 - 1997	DT90 (13 Spline)	RBX-110
100	1989 - 2000	DT100 (13 Spline)	RBX-110
115	1981 - 1991	DT115 (13 Spline)	RBX-110
115	1992 - 2001	DT115 (13 Spline)	RBX-110
140	1981 - 1991	DT140 (13 Spline)	RBX-110
140	1992 - 2001	DT140 (13 Spline)	RBX-110

Tohatsu/Nissan
Engine HP	Engine year	Engine model	Requires hub
60	1998	60C Large Gearcase (15 Spline)	RBX-109
70	1998 - 1999	70C Lg Gearcase (15 Spline)	RBX-109
70	1998 - 2002	MD70A2 TLDI (15 Spline)	RBX-109
70	2002 - 2010	MD70B TLDI (15 Spline)	RBX-109
75	2010 - Present	MD75 TLDI (15 Spline)	RBX-109
90	1987 - 2001	90A 2-Cycle (15 Spline)	RBX-109
90	2001 - 2002	MD90A TLDI (15 Spline)	RBX-109
90	2003 - 2010	MD90B TLDI (15 Spline)	RBX-109
90	2011 - Present	MD90C2 TLDI (15 Spline)	RBX-109
115	1992 - 2005	115A & 115A2 2-Cycle (15 Spline)	RBX-109
115	2004 - Present	MD115 TLDI (15 Spline)	RBX-109
120	1988 - 1995	120A 2-Cycle (15 Spline)	RBX-109
120	1999 - 2003	120A2 2-Cycle (15 Spline)	RBX-109
140	1988 - 1997	140A 2-Cycle (15 Spline)	RBX-109
140	1998 - 2003	140A2 2-Cycle (15 Spline)	RBX-109

Yamaha
Engine HP	Engine year	Engine model	Requires hub
50	1996 - Present	T50 4-Cyc. High Thrust (15 Spline)	RBX-208
60	1992 - 2005	C60,E60 2-Stroke (15 Spline)	RBX-208
60	1992 - 2005	P60 2-Stroke (15 Spline)	RBX-208
60	2003 - Present	T60 4-Cyc. High Thrust (15 Spline)	RBX-208
70	1984 - 2010	2 Stroke (15 Spline)	RBX-208
70	2010 - Present	F70 4-Stroke (15 Spline)	RBX-208
75	1994 - 1999	2 Stroke,C75,E75,P75 (15 Spline)	RBX-208
75	2003 - 2012	F75 4-Stroke (15 Spline)	RBX-208
75	2005 - 2012	F75B 4-Stroke (15 Spline)	RBX-203
75	2005 - 2012	F75B 4-Stroke (15 Spline)	RBX-203
75	2013 - Present	F75 4-Stroke (15 Spline)	RBX-208
80	1984 - 1989	2 Stroke (15 Spline)	RBX-208
80	1997	2 Stroke (15 Spline)	RBX-208
80	1999 - 2002	F80 4-Stroke (15 Spline)	RBX-208
85	1991 - 1997	2 Stroke (15 Spline)	RBX-208
90	1984 - Present	2 Stroke (15 spline)	RBX-208
90	1999 - 2016	F90 4-Stroke (15 Spline)	RBX-208
90	2005 - 2012	F90B 4-Stroke (15 Spline)	RBX-203
90	2005 - 2012	F90B 4-Stroke (15 Spline)	RBX-203
90	2017 - Present	F90 4-Stroke (15 Spline)	RBX-208
100	1999 - 2002	F100 4-Stroke (15 Spline)	RBX-208
100	2005 - 2012	F100B 4-Stroke (15 Spline)	RBX-203
115	1984 - 2010	2 Stroke,C115,P115 (15 Spline)	RBX-203
115	2000 - 2005	F115 4-Stroke (15 Spline)	RBX-203
115	2006 - 2016	F115 4-Stroke (15 Spline)	RBX-203
115	2016 - Present	VF115 VMAX SHO (15 Spline)	RBX-203
115	2017 - Present	F115 4-Stroke (15 Spline)	RBX-203
130	1988 - 1997	2 Stroke (15 Spline)	RBX-203
130	1998 - 2003	2 Stroke (15 Spline)	RBX-203
