Boating Accessories > Pumps & Accessories > Wash Down Pumps

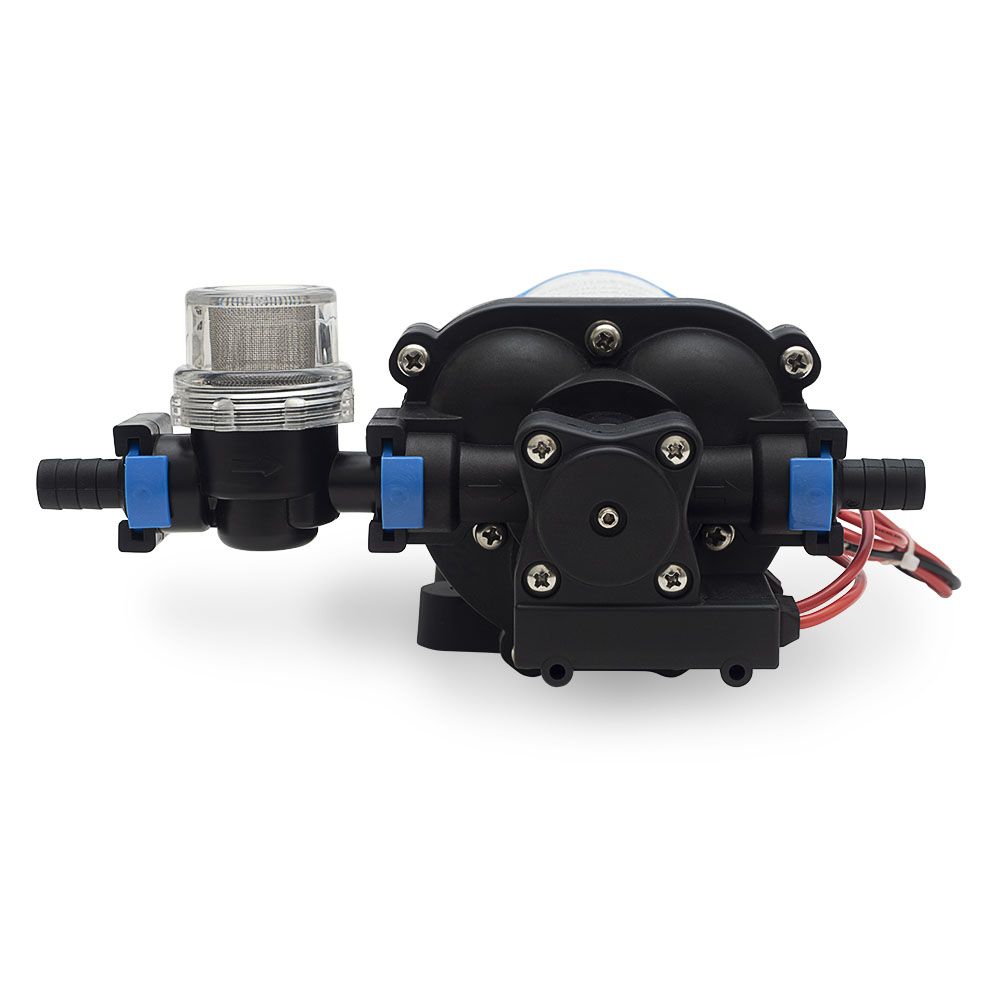

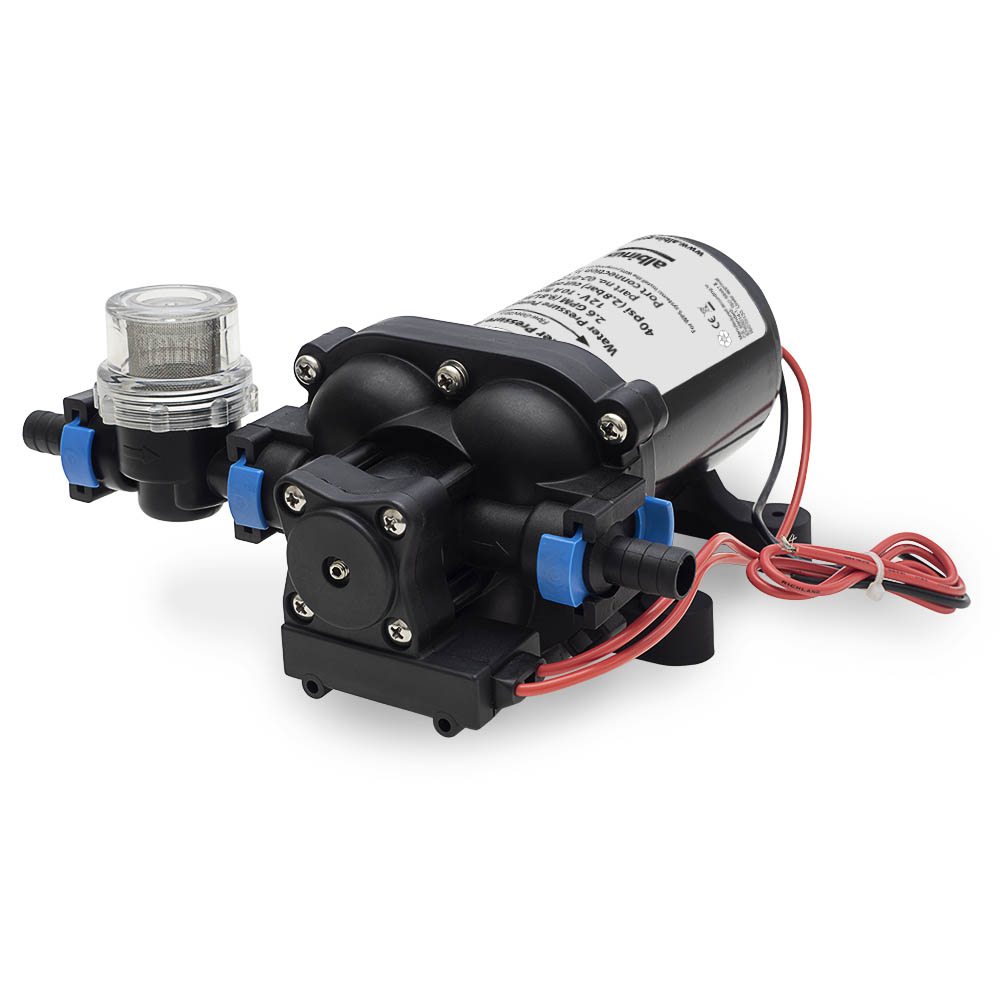

Water Pressure Pump WPS 2.6 12V Part number 02-01-003
Water Pressure Pump WPS 2.6 12V Part Number 02-01-003~1

02-01-003

Water Pressure Pump WPS 2.6 12V

In Stock
$211.17 (excluding GST)
Or, 4 easy payments of $60.71 (including GST) with Buy 02-01-003 with Afterpay.
Details:
Product Group: Boating Accessories
Product Sub Group: Pumps & Accessories
Product Sub Group 2: Wash Down Pumps
Product brand: Albin
Documents: Parts\SP\02-01-003~3 (pdf)

Description:

02-01-003 - Water Pressure Pump WPS 2.6 12V
Premium water pressure pump 12V with capacity 10 L/min (2.6 GPM). Designed for continuous supply of pressurized water on demand in marine environments. Features a 3-chamber diaphragm design with cut-off pressure of 2.8 bar (40 psi). Easy to install with quick disconnect ports for 1/2" hose connections; inlet strainer 40 mesh included. Fuse size 10 A. Interchangeable with Johnson Pump 10-24604-03.

Features:
• 3-chamber diaphragm pump for smooth, pulsation-free flow and quiet operation
• Integrated extra heavy duty sealed pressure switch with cut-in at 1.7 bar (25 psi) and cut-off at 2.8 bar (40 psi)
• Self-priming up to 2 m (6.5 ft) vertical lift
• Quick disconnect ports for easy connection to 1/2" hose
• Built-in check valve on outlet to maintain system pressure
• Motor: 80 W, 12V DC with built-in thermal protection
• Duty cycle: Intermittent (max 20 min continuous operation)
• Max liquid temperature: +50°C (+120°F); max ambient temperature: +60°C (+140°F)
• Body: Nylon/Polypropylene; valve housing: Polypropylene/Polyamide; valves: Santoprene/EPDM; diaphragm: Santoprene; fasteners: Stainless steel
• Inlet strainer: 40 mesh (included) for debris protection
• Serves up to 3 outlets (faucets, showers, etc.)
• Composite base mount for reduced vibration and quieter operation
• Manufactured according to CE standards: EN55014-1, ISO 88461, and ISO10133

Compatibility:
• Suitable for fresh water pressure systems on boats, yachts, and marine vessels
• Recommended for use with reinforced, high-pressure flexible tubing (1/2" hose)
• Compatible with Albin Pump Marine accessories, such as Accumulator Tank (e.g., 02-66-022) for optimal performance
• Ideal for hot and cold water supply to faucets, showers, and similar outlets

Performance (at 12V):
• Open flow: 9.2 L/min (2.5 GPM) at 0 bar
• At 0.8 bar (12 psi): 7.9 L/min (2.1 GPM), 3.7 A draw
• At 1.6 bar (23 psi): 6.8 L/min (1.8 GPM), 4.9 A draw
• At 2.4 bar (35 psi): 5.8 L/min (1.5 GPM), 5.7 A draw
• At 2.8 bar (41 psi): 5.4 L/min (1.4 GPM), 6.2 A draw
(Performance at 13.6V battery charge: Open flow 10 L/min (2.7 GPM), 3.0 A)

Dimensions:
• Length (A): 205 mm (8.1 in)
• Width (B): 105 mm (4.1 in)
• Height (C): 71 mm (2.8 in)
• Weight: 2.2 kg (4.9 lbs)

This pump is part of the Albin Pump Marine WPS series for reliable marine water pressure applications.
