Description:

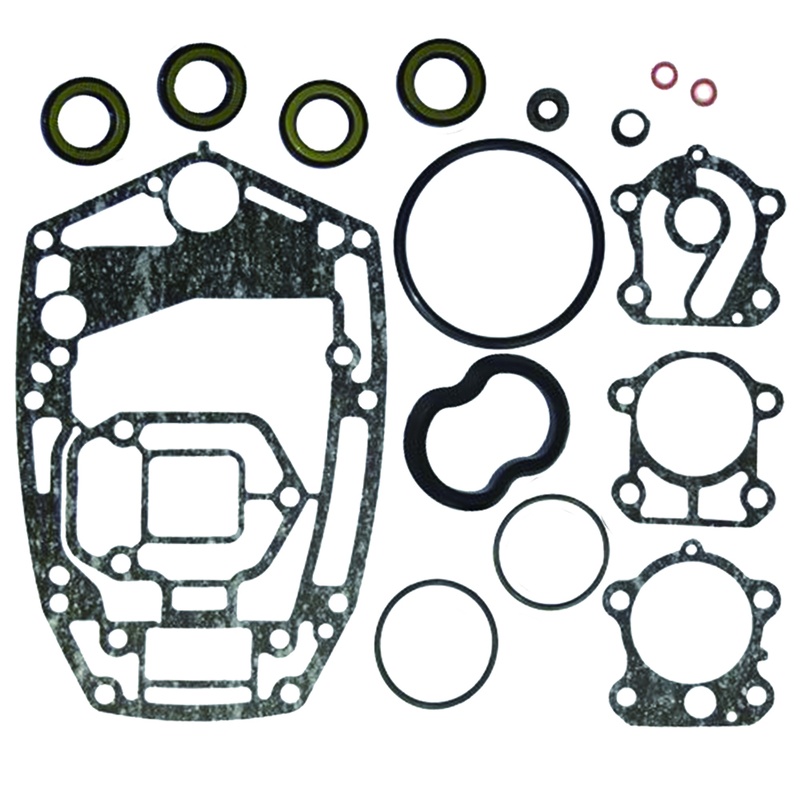

PP-6H2-W0001-20 Yamaha Lower Unit Gasket Kit / Seal Kit
Suits Yamaha:
• 60 HP Two-Stroke (2004–2014, including 60FETL / FETOL variants)
• 70 HP Two-Stroke (2004–2014, including 70BETOL variants)
Used as a complete lower unit gasket and seal repair kit for the gearcase on Yamaha 60–70 hp two-stroke outboards (mid-2000s to mid-2010s models). Includes all necessary gaskets, O-rings, oil seals, and dampers for a full lower unit reseal or rebuild.
Replaces Yamaha:
• 6H2-W0001-20
Includes the following items:
• Gasket, Upper Casing (6H3-45114-A1) – Qty 1
• Gasket, Muffler (6H3-45123-00) – Qty 1
• Gasket (90430-08020) – Qty 2
• O-Ring (93210-49046) – Qty 1
• Oil Seal (93106-09014) – Qty 1
• Gasket, Water Pump (688-44315-A0) – Qty 1
• Gasket, Cartridge (688-44324-A0) – Qty 1
• Gasket, Water Pump (688-44316-A0) – Qty 1
• O-Ring (93210-46044) – Qty 1
• Oil Seal (93101-25M03) – Qty 2
• O-Ring (93210-85M97) – Qty 1
• Damper, Water Seal (663-44366-00) – Qty 1
